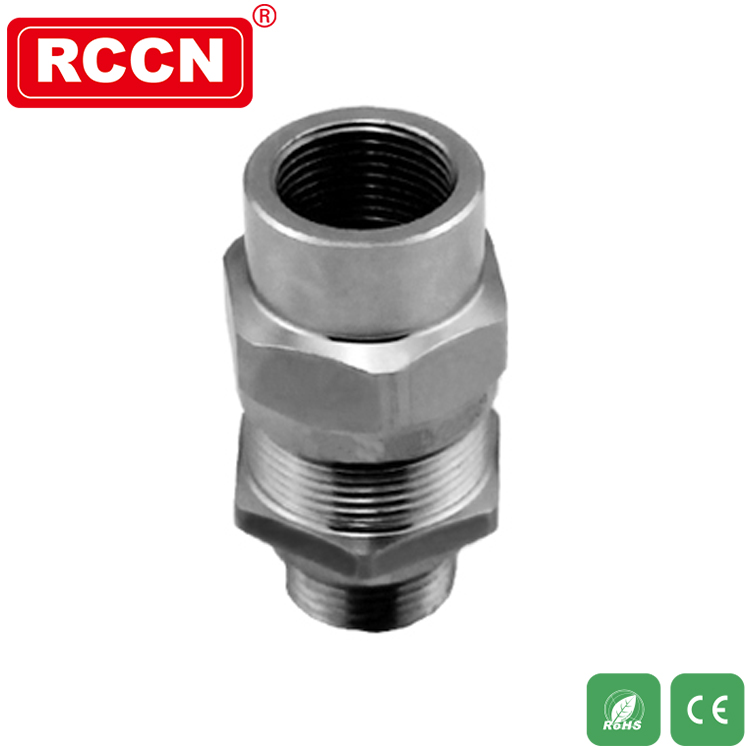

材 料：外部金属为不锈钢304 ,密封件材料为改性橡胶
防护等级：在规定的卡口范围之内，防护等级可以达到IP66
温度范围：-40℃到100℃
应用场合：用于爆炸危险的场所，防爆电气设备连接，化工、石油、电力、轻工、机械等各个部门，特别适用于自动化工程线路安装。
防爆等级：Ex d IIC Gb/Ex e IIGB
|
型号 Item No. |
螺纹规格 Thread Dimension |
卡口范围 Clamping range mm |
螺纹外径 AG mm |
螺纹长度 GL mm |
高度 H mm |
扳手尺寸 Wrench size mm |
包装单位 Std.Pkg PCS |
| BXG-EX3-M/NPT 公制螺纹 Metric Thread / 美制螺纹 American Thread | |||||||
| BXG-EX3-M16/NPT3/8 | M16x1.5/NPT3/8 | 6-12 | 16 | 15 | 42.5 | 26 | 10 |
| BXG-EX3-M20/NPT1/2 | M20x1.5/NPTl/2 | 10-15 | 20 | 15 | 42.5 | 30 | 10 |
| BXG-EX3-M25/NPT3/4 | M25x1.5/NPT3/4 | 14-18 | 25 | 15 | 48 | 34 | 10 |
| BXG-EX3-M30/NPT1 | M30x2.0/NPT1 | 17-23 | 30 | 15 | 48 | 45 | 10 |
| BXG-EX3-M32/NPT1 1/4 | M32x1.5/NPT11/4 | 22-27 | 32 | 15 | 48 | SO | s |
| BXG-EX3-M40/NPT1 1/2 | M40x1.5/NPT11/2 | 26-33 | 40 | 15 | 55.5 | 55 | 2 |
| BXG-EX3-M50/NPT2 | M50x1.5/NPT2 | 32-41 | 50 | 15 | 55.5 | 65 | 1 |
| BXG-EX3-M56/NPT2 1/4 | M56x2.0/NPT2 1/4 | 40-49 | 56 | 20 | 55.5 | 75 | 1 |
| BXG-EX3-M63/NPT2 1/2 | M63x1.5/NPT2 1/2 | 48-57 | 63 | 20 | 55.5 | 80 | 1 |
| BXG-EX3-M-G 公制螺纹 Metric Thread /G管螺纹 G Thread | |||||||
| BXG-EX3-M16/G3/8 | M16x1.5/G3/8 | 6-12 | 16 | 15 | 42.5 | 26 | 10 |
| BXG-EX3-M20/G1/2 | M20x1.5/G1/2 | 10-15 | 20 | 15 | 42.5 | 30 | 10 |
| BXG-EX3-M25/G3/4 | M25x1.5/G3/4 | 14-18 | 25 | 15 | 48 | 34 | 10 |
| BXG-EX3-M30/G1 | M30x2.0/G1 | 22-27 | 30 | 15 | 48 | 50 | 5 |
| BXG-EX3-M32/G1 1/4 | M32x1.5/Gl 1/4 | 26-33 | 32 | 15 | 48 | 55 | 2 |
| BXG-EX3-M40/G1 1/2 | M40x1.5/Gl 1/2 | 32-41 | 40 | 15 | 55.5 | 65 | 1 |
| BXG-EX3-M50/G2 | M50x1.5/G2 | 40-49 | 50 | 20 | 55.5 | 70 | 1 |
